Horizontal/Vertical Belt Sander

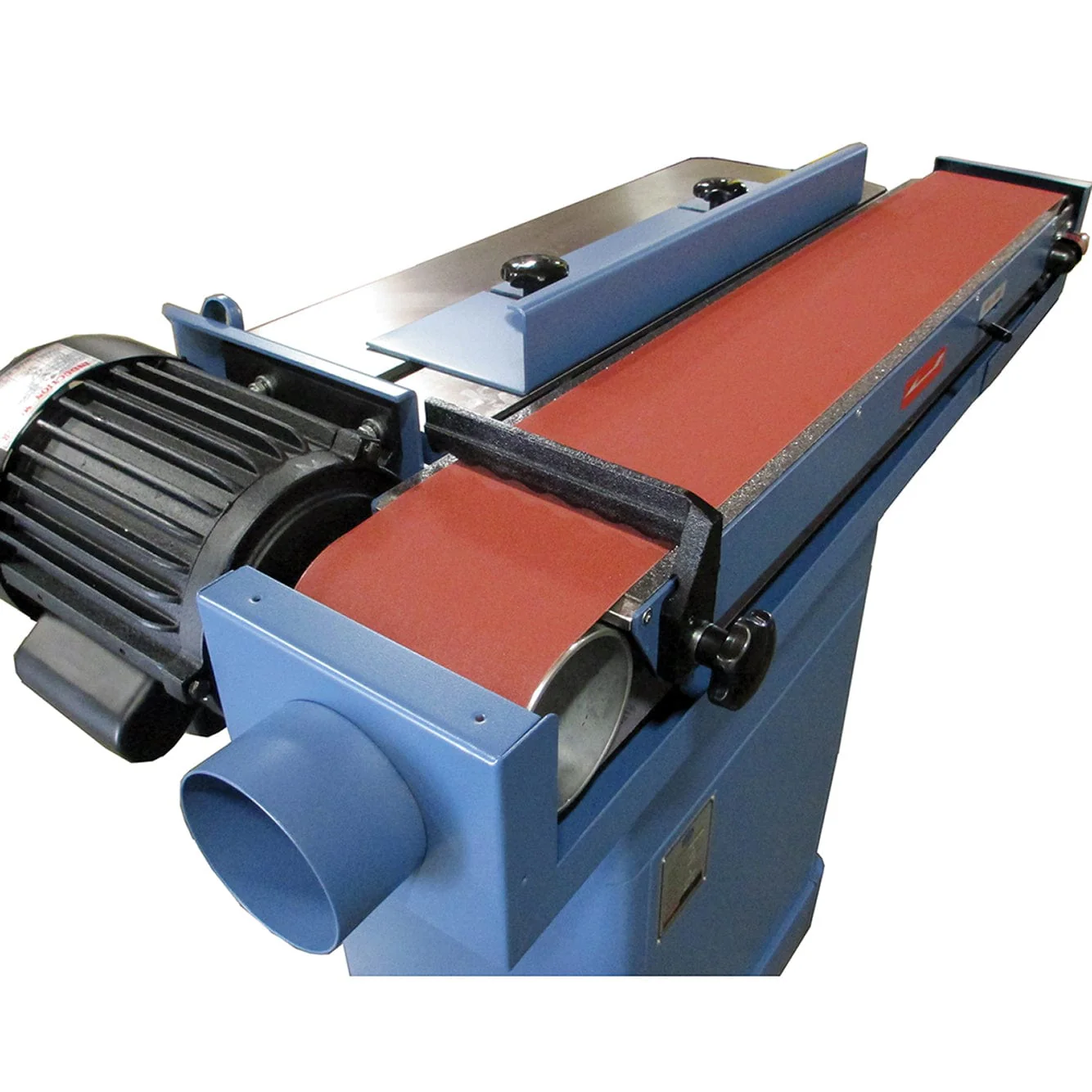

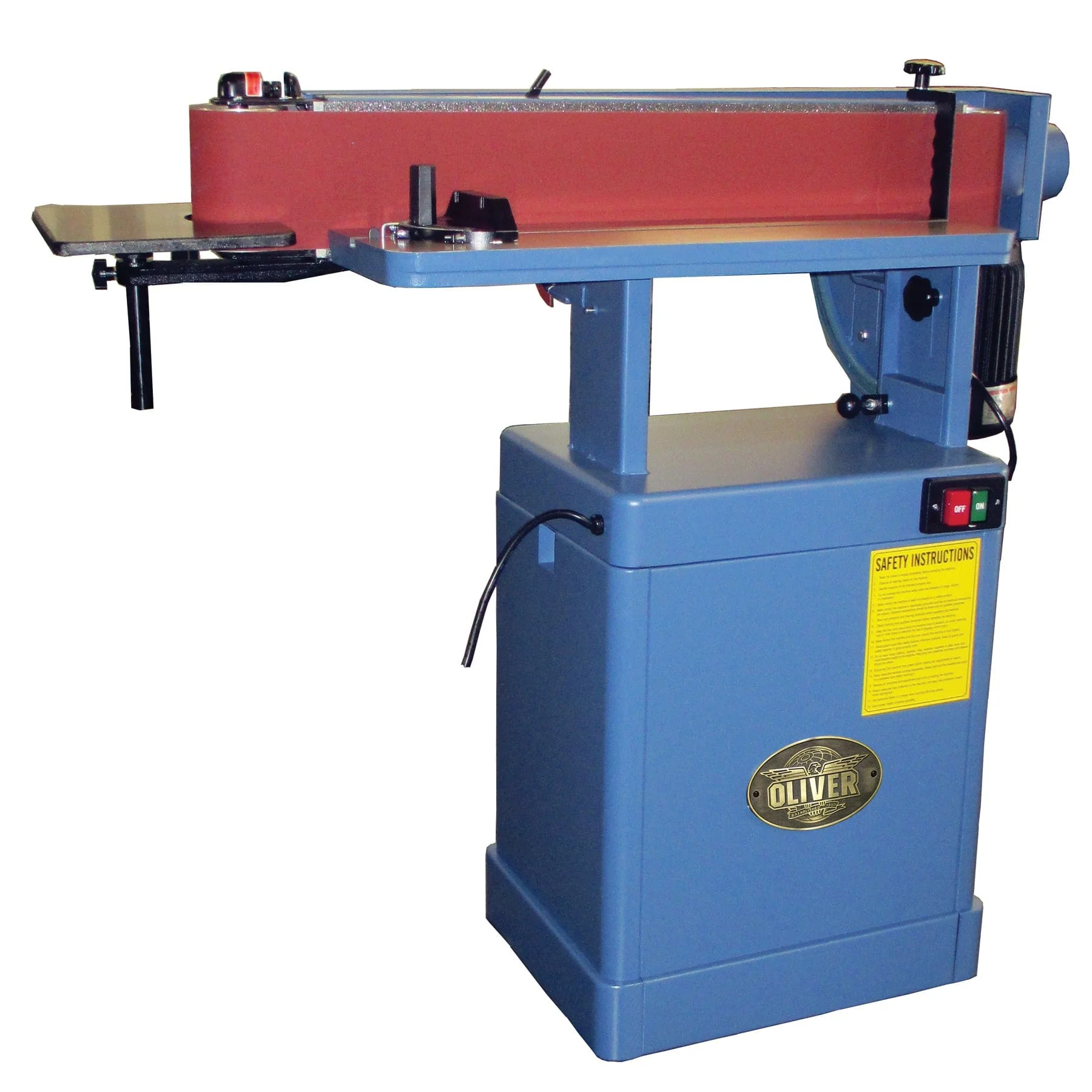

Oliver Machinery 6305 belt sander can be operated in the horizontal or vertical position or any angle between 0° and 90°. The precision ground platen feature a graphite cover that reduces heat and extends the life of the 6" x 89" sanding belt. Belt tracking and replacement is easy to perform with convenient controls. An end table is included for contour sanding.
Features
- Can be used with the belt in the horizontal or vertical position or any angle in between.
- Precision ground steel platen is graphite covered to reduce heat.

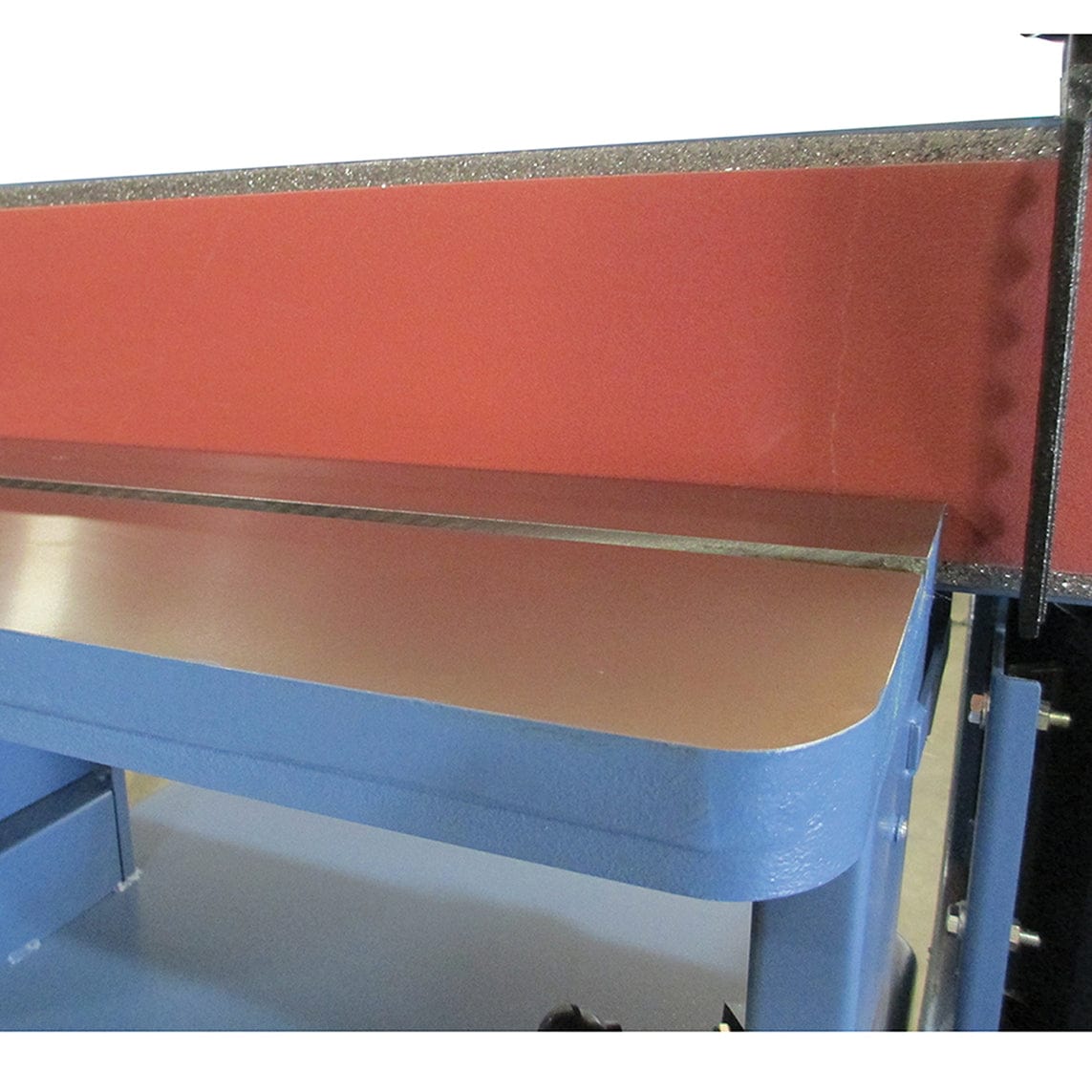

- Cast iron table is vertically adjustable allowing full use of belt.
- Belt tracking and tension are easy to adjust.
- Full access to the belt allows quick replacement.

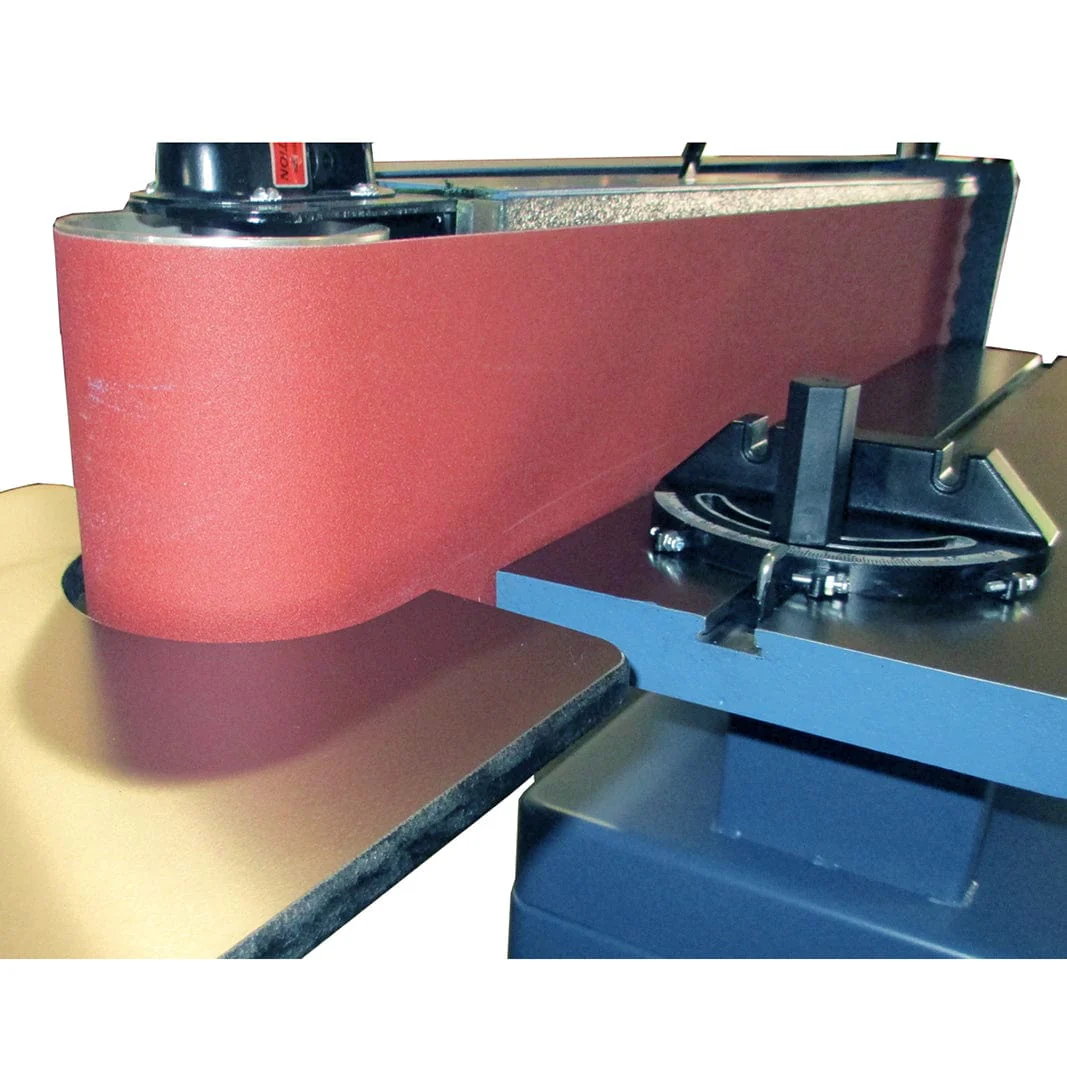

- Adjustable end table is included allowing contour sanding applications.
- Miter gauge is included for added value and increased versatility.
- Full cabinet design provides a stable work station.

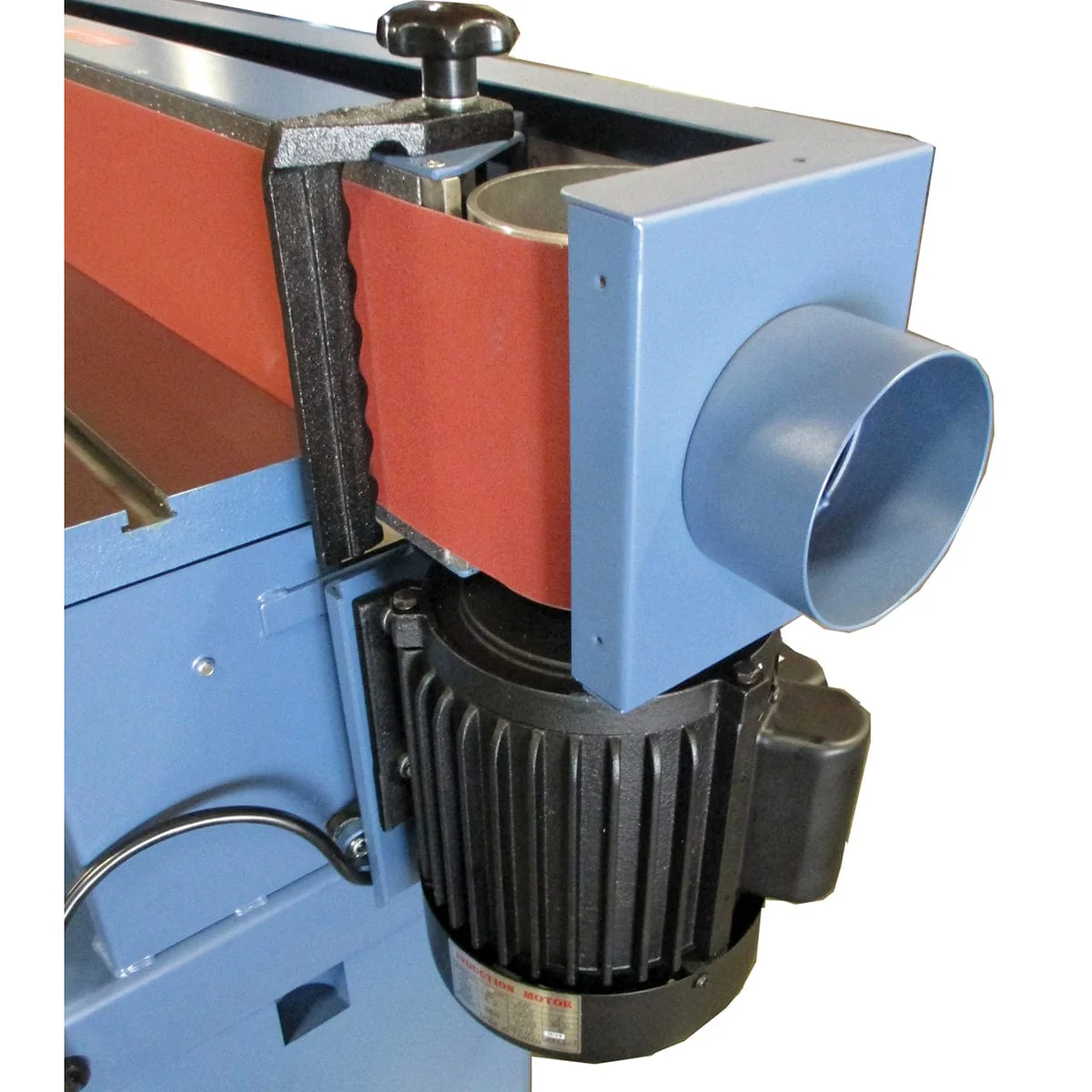

- Built-in 4” dust port allows efficient dust management.
- Industrial push button controls are located for easy control.
- Powerful TEFC 1.5HP single phase motor.
- Model Number: 6305
- Stock Number: 6305.001
- Table Length: 27”
- Table Width: 10”
- Table Material: Cast Iron
- Belt Size: 6” x 89”
- Belt Speed: 3,900 FPM
- Front Table Size: 27” x 9.8”
- Table Tilt: 90° to 180°
- Table Height: 37-1/2” - 40-1/2
- Dust Port Diameter: 4"
- Motor: 1.5 HP, 1Ph 115/220V Prewired 115 (18/9 Amp)
- Overall Dimensions: 48” x 23” x 48”
- Net Weight: 246 lbs.
- Gross Weight: 264 lbs.
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days, unless the item is on backorder.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
Returns are accepted by Oliver Machinery within 30 days of receipt. Return Materials Authorization (RMA) required prior to return. A 20% restocking fee will be applied. Customer responsible for return freight. Contact Woodcraft Customer Service for return assistance at 1-800-225-1153.
Warranty Information
Oliver Machinery warrants its products to the original customer as free from defects for a period of two years on parts and 1 year for the electronics and motor.
