22" Oscillating Drum Sander with Closed Stand - 1-3/4 HP 1 Ph 115V - JWDS-2244OSC
āµ
The JetĀ® 22" Oscillating Drum Sander with Closed Stand , model JWDS-2244OSC is designed to provide a superior finish and makes for a healthier sanding experience due to better dust control. With an exclusive variable speed oscillating drum that moves from left to right, it will minimize visual scratch patterns and increases the lifespan of abrasive paper. Jetās Sandsmartā¢ conveyer system continuously monitors the load on the drum motor to prevent an overload situation by automatically adjusting the conveyer speed. The dust hood has a molded design that optimizes dust collection up to 97% efficient, preventing dust and chips to get between your work-piece and the finish. This sander delivers everything you need for an effortless finish. This Sander requires Jet Infeed/Outfeed Tables - Model 723551 - Woodcraft Item: 165405.
Features:
- Exclusive variable speed Oscillating Drum
- Sandsmartā¢ control to monitor the load
- Conveyor bed parallelism, easy to adjust, no tools required
- Dust hood with integrated channels for 97% dust control

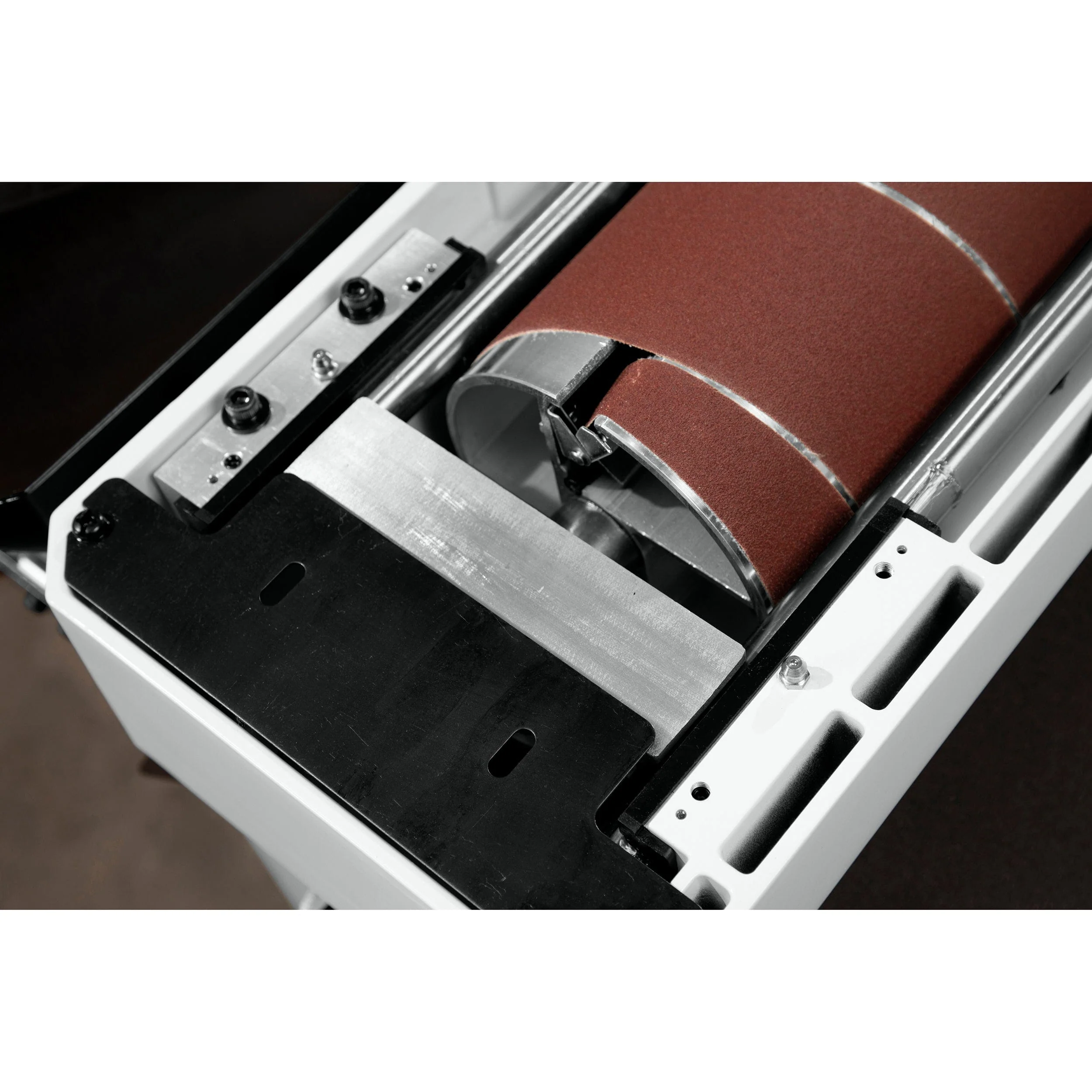

- Precision-machined and balanced extruded aluminum drum designed to dissipate heat
- Precision-flattened, reinforced steel conveyor bed
- Conveyor system pulls work piece thru instead of pushing
- One rotation of the top-position hand wheel equals 1/16ā drum height adjustment
- Depth Scale on the hand wheel allows the ability to reset and measure the depth repeatedly
- Variable speed control of up to 10ā per minute
- Tool-less abrasive take-up clips for quick and easy belt changes
- Adjustable Tension rollers apply downward pressure on the work piece reducing snipe
- Separate feed and drum motors for independent control and better performance
- Dust hose hanger for added ease of use

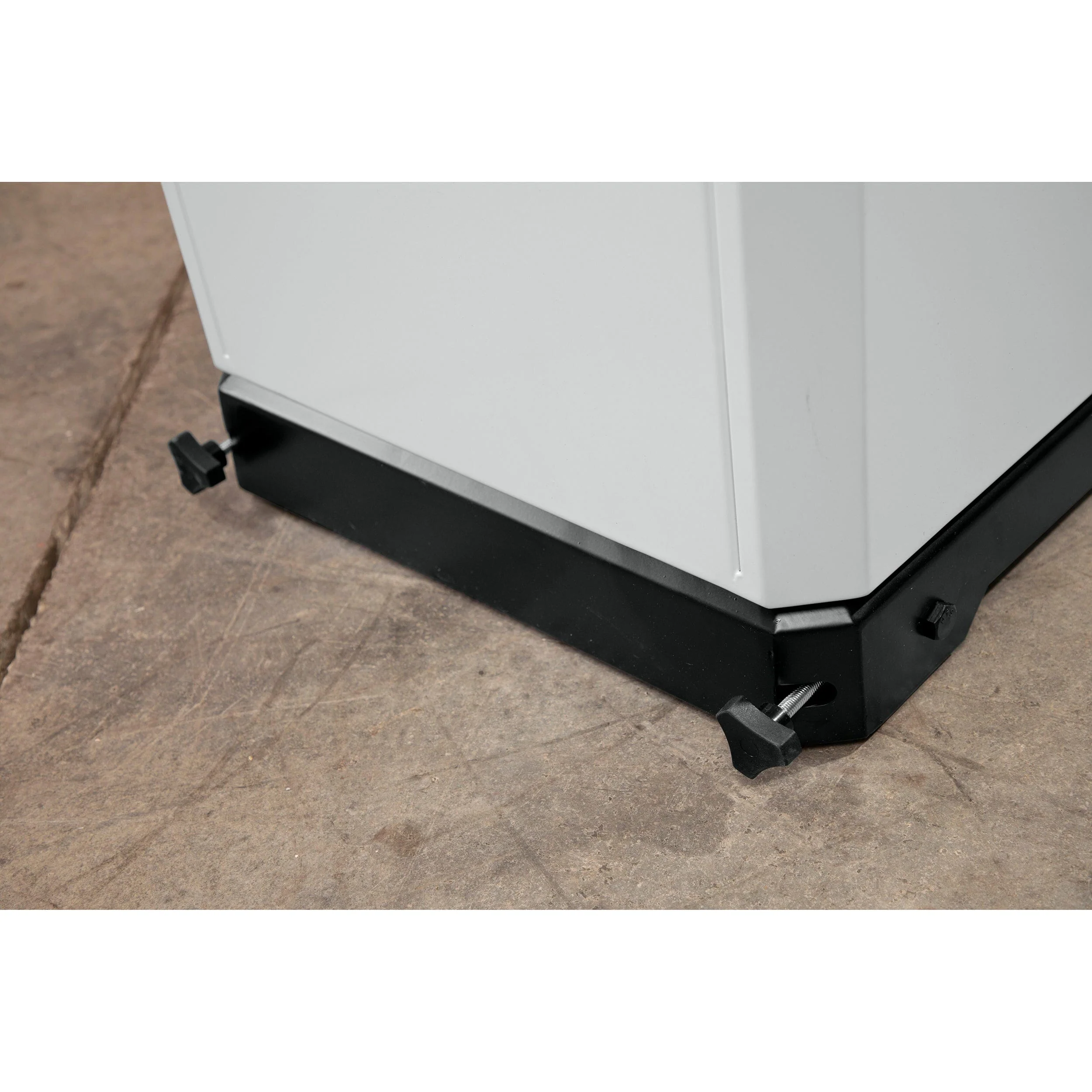

- Mobile cabinet features a heavy duty 45ā x 24ā footprint for increased stability and enclosed storage area
Specifications:
- Motor: 1-3/4HP, 1Ph, 15A, 115V/60Hz
- Drum speed (rpm): 1725
- Dust port: 4ā
- Drum length: 23"
- Drum diameter: 5ā
- Conveyor speed: 0-10 FPM
- Conveyor table size: 26" x 21-3/4"
- Abrasive installed: 80 Grit
- Maximum board thickness: 4ā
- Minimum board thickness: 1/32ā
- Minimum board length: 2-3/8ā
- Maximum board width: 22" with one pass
- Maximum board width: 44ā with 2 passes
- Style: floor model - closed stand
- Net weight: 216 lb - machine only
What's Included:
- (1) JetĀ® 22" Oscillating Drum Sander with Closed Stand - 1-3/4 HP 1 Ph 115V - JWDS-2244OSC
Note:
- This Sander requires Jet Infeed/Outfeed Tables - Model 723551 - Woodcraft Item: 165405.
